Chapter 2: MOF Adsorption and Simulation¶

This chapter is an advanced continuation of the MOF introduction, showcasing more available features and interactive code.

2.1 Basics of Adsorption Isotherms¶

In applications such as gas storage and separation by MOFs, adsorption isotherms are critical characterization tools.

The typical Langmuir isotherm can be written as:

q(P) = q_{\max} \frac{b P}{1 + b P}

(1)

Where:

$q(P)$ : Adsorbed amount at pressure $P$
$q_{\max}$ : Saturation uptake
$b$ : Equilibrium constant (temperature dependent)

2.2 Visualization of MOF Adsorption Isotherms¶

Different MOFs exhibit distinct adsorption properties, for example, the MOF structures shown in Chapter 1, Section 1.2: Typical Structure Illustration and Unit Cell.

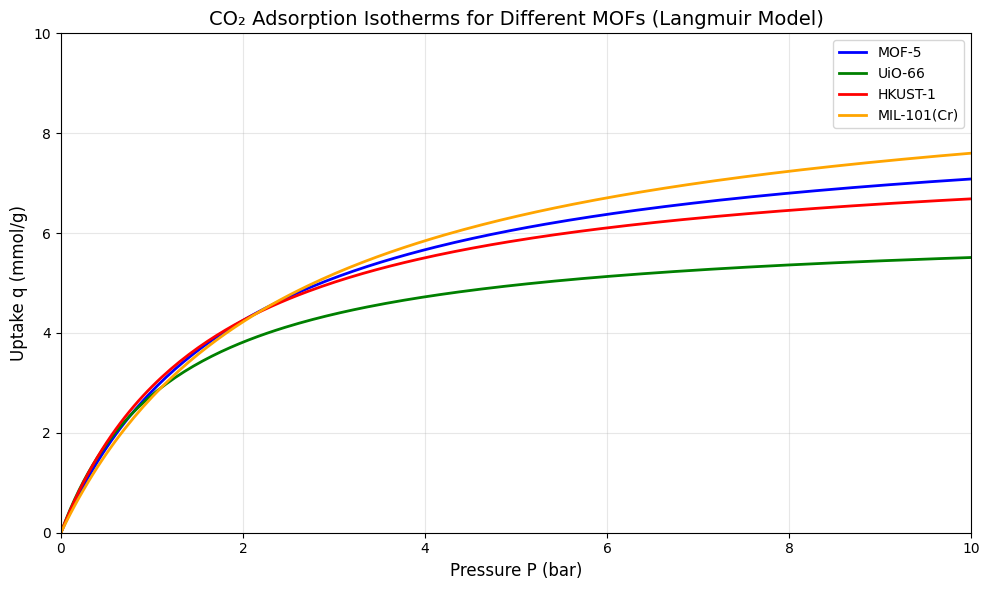

The following example illustrates the adsorption isotherm characteristics of various MOF materials. Here, we use the Langmuir model to simulate typical MOF adsorption behavior.

import numpy as np
import matplotlib.pyplot as plt

# Define Langmuir isotherm function
def langmuir_isotherm(P, qmax, b):
    """
    Langmuir isotherm model
    P: Pressure (bar)
    qmax: Saturation uptake (mmol/g)
    b: Equilibrium constant (bar^-1)
    """
    return qmax * b * P / (1 + b * P)

# Parameters for different MOFs (based on literature data)
mof_params = {
    'MOF-5': {'qmax': 8.5, 'b': 0.5, 'color': 'blue'},
    'UiO-66': {'qmax': 6.2, 'b': 0.8, 'color': 'green'},
    'HKUST-1': {'qmax': 7.8, 'b': 0.6, 'color': 'red'},
    'MIL-101(Cr)': {'qmax': 9.5, 'b': 0.4, 'color': 'orange'}
}

# Generate pressure range
P = np.linspace(0, 10, 200)

# Plot multiple isotherms
plt.figure(figsize=(10, 6))
for name, params in mof_params.items():
    q = langmuir_isotherm(P, params['qmax'], params['b'])
    plt.plot(P, q, label=name, color=params['color'], linewidth=2)

plt.xlabel("Pressure P (bar)", fontsize=12)
plt.ylabel("Uptake q (mmol/g)", fontsize=12)
plt.title("CO₂ Adsorption Isotherms for Different MOFs (Langmuir Model)", fontsize=14)
plt.legend(fontsize=10)
plt.grid(True, alpha=0.3)
plt.xlim(0, 10)
plt.ylim(0, 10)
plt.tight_layout()
plt.show()

import numpy as np
import matplotlib.pyplot as plt

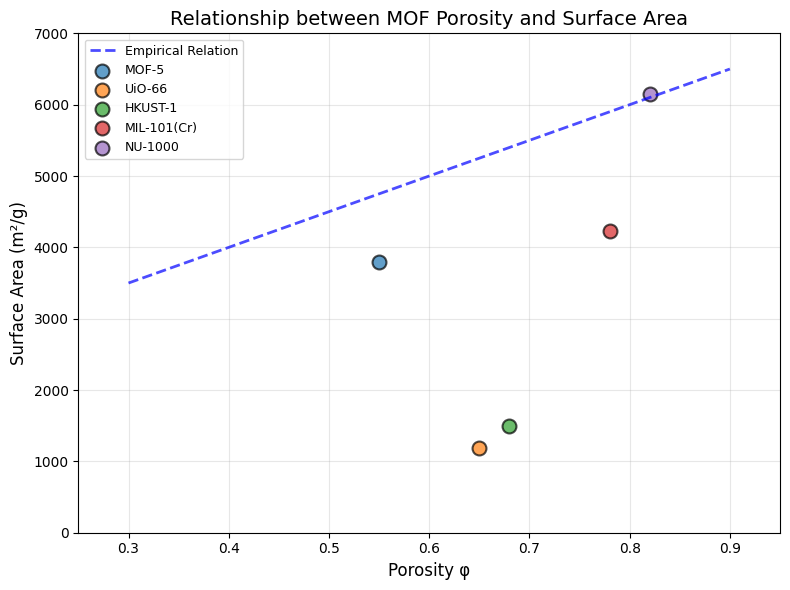

# Relationship between MOF porosity and surface area (empirical fit)
# Typical MOF porosity range: 0.3 - 0.9
phi = np.linspace(0.3, 0.9, 13)

# Empirical relation between surface area and porosity (simplified model)
# Most MOFs have specific surface area in the range 1000-7000 m²/g
surface_area = 2000 + 5000 * phi  # simplified linear relationship

# Representative MOF data points
mof_data = {
    'MOF-5': {'phi': 0.55, 'sa': 3800},
    'UiO-66': {'phi': 0.65, 'sa': 1187},
    'HKUST-1': {'phi': 0.68, 'sa': 1500},
    'MIL-101(Cr)': {'phi': 0.78, 'sa': 4230},
    'NU-1000': {'phi': 0.82, 'sa': 6143}
}

plt.figure(figsize=(8, 6))
plt.plot(phi, surface_area, 'b--', linewidth=2, label='Empirical Relation', alpha=0.7)

# Plot MOF data points
for name, data in mof_data.items():
    plt.scatter(data['phi'], data['sa'], s=100, alpha=0.7,
                label=name, edgecolors='black', linewidth=1.5)

plt.xlabel("Porosity φ", fontsize=12)
plt.ylabel("Surface Area (m²/g)", fontsize=12)
plt.title("Relationship between MOF Porosity and Surface Area", fontsize=14)
plt.legend(fontsize=9, loc='upper left')
plt.grid(True, alpha=0.3)
plt.xlim(0.25, 0.95)
plt.ylim(0, 7000)
plt.tight_layout()
plt.show()

2.3 Simulation of Gas Molecule Diffusion in MOF Channels¶

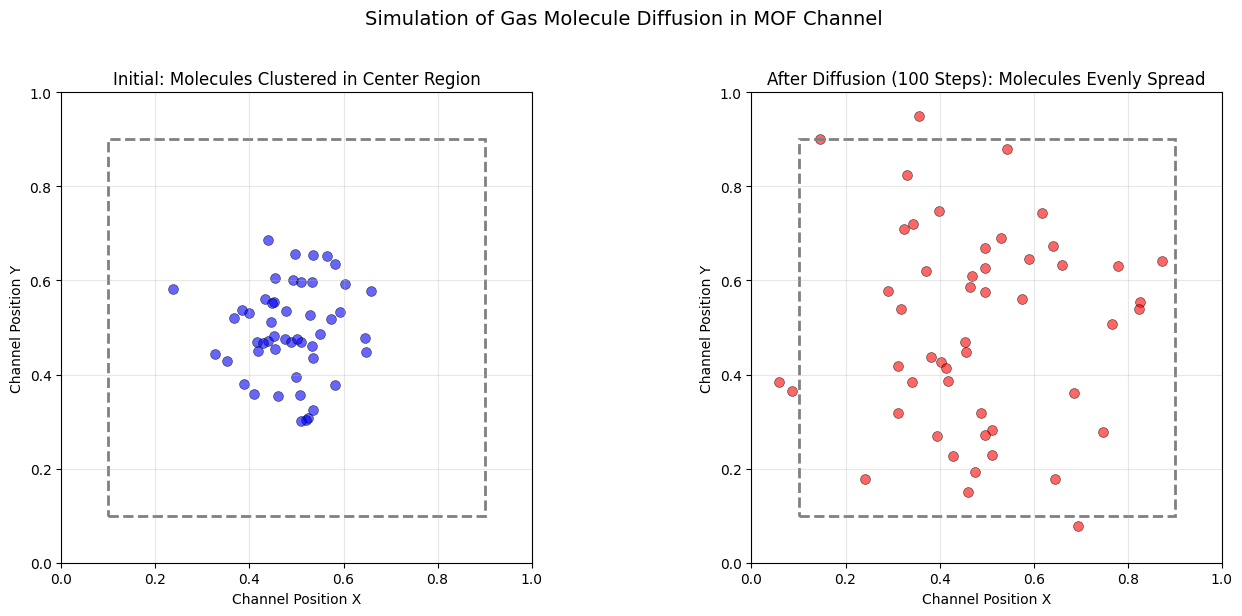

Below is a static visualization example that simulates the distribution and diffusion behavior of gas molecules in MOF channels. We use a random walk model to simulate the distribution of molecules at different timesteps.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle

# Simulation parameters
np.random.seed(42)  # For reproducibility
n_particles = 50
n_steps = 100
box_size = 1.0

# Initialize: all molecules at center region
initial_positions = np.random.normal(0.5, 0.1, (n_particles, 2))
initial_positions = np.clip(initial_positions, 0.1, 0.9)

# Diffusion process (random walk)
positions = initial_positions.copy()
for step in range(n_steps):
    # Random step (related to diffusion coefficient)
    step_size = 0.02
    random_steps = np.random.normal(0, step_size, (n_particles, 2))
    positions += random_steps
    # Reflective boundary
    positions = np.clip(positions, 0.05, 0.95)

# Visualization
fig, axes = plt.subplots(1, 2, figsize=(14, 6))

# Left: initial distribution
ax1 = axes[0]
ax1.scatter(initial_positions[:, 0], initial_positions[:, 1],
           c='blue', s=50, alpha=0.6, edgecolors='black', linewidth=0.5)
ax1.add_patch(Rectangle((0.1, 0.1), 0.8, 0.8, fill=False,
                        edgecolor='gray', linewidth=2, linestyle='--'))
ax1.set_xlim(0, 1)
ax1.set_ylim(0, 1)
ax1.set_aspect('equal')
ax1.set_title("Initial: Molecules Clustered in Center Region", fontsize=12)
ax1.set_xlabel("Channel Position X", fontsize=10)
ax1.set_ylabel("Channel Position Y", fontsize=10)
ax1.grid(True, alpha=0.3)

# Right: after diffusion
ax2 = axes[1]
ax2.scatter(positions[:, 0], positions[:, 1],
           c='red', s=50, alpha=0.6, edgecolors='black', linewidth=0.5)
ax2.add_patch(Rectangle((0.1, 0.1), 0.8, 0.8, fill=False,
                        edgecolor='gray', linewidth=2, linestyle='--'))
ax2.set_xlim(0, 1)
ax2.set_ylim(0, 1)
ax2.set_aspect('equal')
ax2.set_title(f"After Diffusion ({n_steps} Steps): Molecules Evenly Spread", fontsize=12)
ax2.set_xlabel("Channel Position X", fontsize=10)
ax2.set_ylabel("Channel Position Y", fontsize=10)
ax2.grid(True, alpha=0.3)

plt.suptitle("Simulation of Gas Molecule Diffusion in MOF Channel", fontsize=14, y=1.02)
plt.tight_layout()
plt.show()

import numpy as np
import matplotlib.pyplot as plt

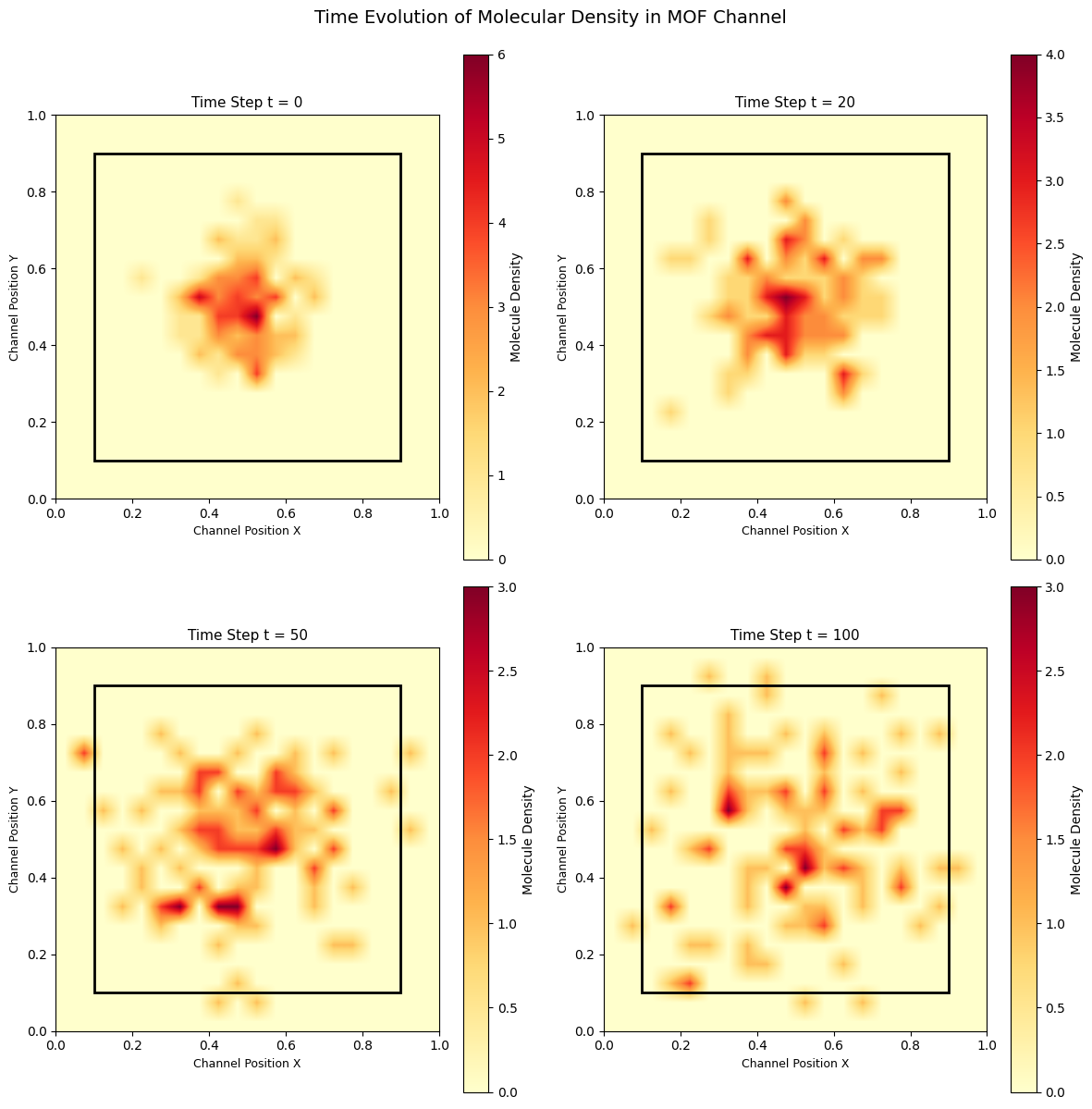

# Simulate molecular density distribution at different time steps
np.random.seed(42)
n_particles = 100
time_steps = [0, 20, 50, 100]
box_size = 1.0

fig, axes = plt.subplots(2, 2, figsize=(12, 12))
axes = axes.flatten()

initial_positions = np.random.normal(0.5, 0.1, (n_particles, 2))
initial_positions = np.clip(initial_positions, 0.1, 0.9)

for idx, n_steps in enumerate(time_steps):
    ax = axes[idx]
    positions = initial_positions.copy()

    for step in range(n_steps):
        step_size = 0.02
        random_steps = np.random.normal(0, step_size, (n_particles, 2))
        positions += random_steps
        positions = np.clip(positions, 0.05, 0.95)

    # Use 2D histogram to show density
    hist, xedges, yedges = np.histogram2d(positions[:, 0], positions[:, 1],
                                          bins=20, range=[[0, 1], [0, 1]])
    extent = [0, 1, 0, 1]

    im = ax.imshow(hist.T, origin='lower', extent=extent,
                   cmap='YlOrRd', interpolation='bilinear', aspect='equal')
    ax.add_patch(plt.Rectangle((0.1, 0.1), 0.8, 0.8, fill=False,
                              edgecolor='black', linewidth=2))
    ax.set_title(f"Time Step t = {n_steps}", fontsize=11)
    ax.set_xlabel("Channel Position X", fontsize=9)
    ax.set_ylabel("Channel Position Y", fontsize=9)
    plt.colorbar(im, ax=ax, label='Molecule Density')

plt.suptitle("Time Evolution of Molecular Density in MOF Channel", fontsize=14, y=0.995)
plt.tight_layout()
plt.show()

2.4 Definitions of Gas Molecule Behaviors in MOF Channels¶

2.4.1 Definitions of Different Molecular Behaviors¶

Adsorption

Desorption

Diffusion

Adsorption is the process where gas or liquid molecules are “adsorbed onto” the surface or into the pores of a solid.

2.4.2 Brief Introduction to Adsorption Process Simulation¶

2.5 Simple GCMC Simulation¶

The following interactive GCMC (Grand Canonical Monte Carlo) visualization is implemented using Altair to simulate the adsorption process in MOFs. You can drag the slider for the chemical potential $\mu$ to dynamically observe the evolution and distribution of the mean number of gas molecules.

import altair as alt
import numpy as np
import pandas as pd

# Simplified GCMC algorithm
def gcmc_sim(mu=-1.5, beta=1.0, V=100.0, n_steps=1000, seed=42):
    np.random.seed(seed)
    N = 0
    N_list = []
    for step in range(n_steps):
        if np.random.rand() < 0.5:
            # Insert
            dE = 0.5 * N
            acc = min(1, np.exp(-beta * dE + beta * mu + np.log(V/(N+1))))
            if np.random.rand() < acc:
                N += 1
        else:
            # Remove
            if N > 0:
                dE = 0.5 * (N-1)
                acc = min(1, np.exp(-beta*(-dE) - beta*mu + np.log(N/V)))
                if np.random.rand() < acc:
                    N -= 1
        N_list.append(N)
    return N_list

# Generate GCMC statistics for different μ values
# Use ALL mu values that are multiples of 0.05 to match slider step exactly
# This ensures slider can match ALL possible values (2.75, 2.8, 2.85, etc.)
mu_list = np.arange(-3.0, 0.05, 0.05)  # -3.0, -2.95, -2.9, -2.85, ..., -0.05 (60 values)
# All values are multiples of 0.05, matching slider step perfectly
steps = 300  # Reduced steps to keep total data size manageable
results = []

for mu in mu_list:
    # Round to 2 decimal places to avoid floating point precision issues
    mu_rounded = np.round(mu, 2)
    N_hist = gcmc_sim(mu=mu_rounded, n_steps=steps)
    # Downsample: take every 4th point to reduce data size (60 mu * 75 points = 4500 rows)
    for i in range(0, len(N_hist), 4):
        results.append({
            'mu': mu_rounded,  # Use the rounded value
            'Step': i,
            'N': N_hist[i]
        })

df = pd.DataFrame(results)

# Mean adsorption statistics
df_mean = df.groupby('mu').agg(meanN=('N','mean'), stdN=('N','std')).reset_index()

# Altair slider using param (Altair v5+)
slider = alt.binding_range(min=-3, max=0, step=0.05, name='μ (chemical potential)=')
mu_select = alt.param(
    bind=slider,
    value=-1.5
)

# 1. Evolution curve (top panel, full width)
# Now mu values are exact multiples of 0.05, use small tolerance for matching
line_evo = alt.Chart(df).mark_line(opacity=0.7, strokeWidth=2).encode(
    x=alt.X('Step:Q', axis=alt.Axis(title='MC Step')),
    y=alt.Y('N:Q', axis=alt.Axis(title='Number of molecules (N)')),
    color=alt.Color('mu:O', legend=None),
    tooltip=['Step', 'N', 'mu']
).transform_filter(
    # Use small tolerance (0.01) since data mu values are multiples of 0.05
    # This will match when slider is within 0.01 of a data point
    (alt.datum.mu >= mu_select - 0.01) & (alt.datum.mu <= mu_select + 0.01)
).properties(
    width=800, height=250,
    title='GCMC Simulation: Evolution of N vs. MC Step'
).add_params(mu_select)

# 2. Adsorption isotherm
ads_iso = alt.Chart(df_mean).mark_line(interpolate='monotone', point=True).encode(
    x=alt.X('mu:Q', axis=alt.Axis(title='Chemical potential μ', format='.2f')),
    y=alt.Y('meanN:Q', axis=alt.Axis(title='Mean adsorbed molecules ⟨N⟩')),
    tooltip=['mu','meanN','stdN'],
    color=alt.value('#1367a7')
).properties(
    width=400, height=250,
    title='MOF Adsorption Isotherm (GCMC Simulation)'
)

selected = ads_iso.mark_point(size=120, filled=True, color='crimson').encode(
    x='mu:Q', y='meanN:Q'
).transform_filter(
    (alt.datum.mu >= mu_select - 0.01) & (alt.datum.mu <= mu_select + 0.01)
)

# 3. Histogram of N
hist = alt.Chart(df).mark_bar(color='#E09842').encode(
    x=alt.X('N:Q', bin=alt.Bin(maxbins=30), title='Number of molecules N'),
    y=alt.Y('count():Q', title='Count'),
    tooltip=['N','count()']
).transform_filter(
    (alt.datum.mu >= mu_select - 0.01) & (alt.datum.mu <= mu_select + 0.01)
).properties(
    width=400, height=250,
    title='Distribution of N during MC'
)

# Combine panels: Evolution on top, Histogram and Isotherm side by side below
panels = (
    line_evo & (hist | (ads_iso + selected))
).resolve_scale(y='independent')

# Display the chart
panels

You can drag the slider of “ $\mu$ (chemical potential)” to dynamically observe under different $\mu$ (representing different gas pressure/concentration):

The evolution trend of the number of gas molecules with MC step
How the adsorption mean $\langle N \rangle$ varies with $\mu$ (adsorption isotherm)
The histogram distribution of $N$ during MC

This interactive visualization enables researchers or students to intuitively understand and explore the MOF adsorption process and the GCMC concept.
